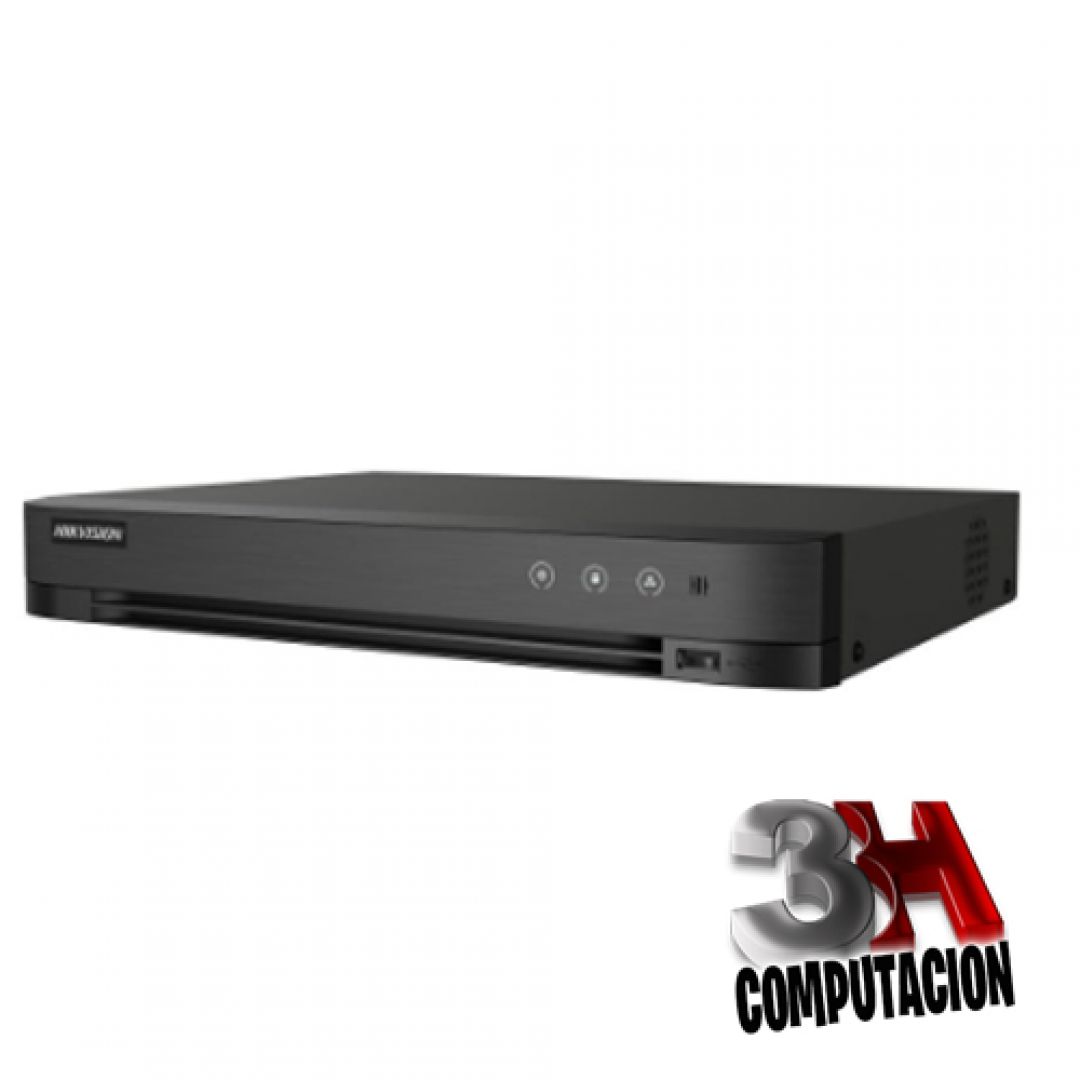

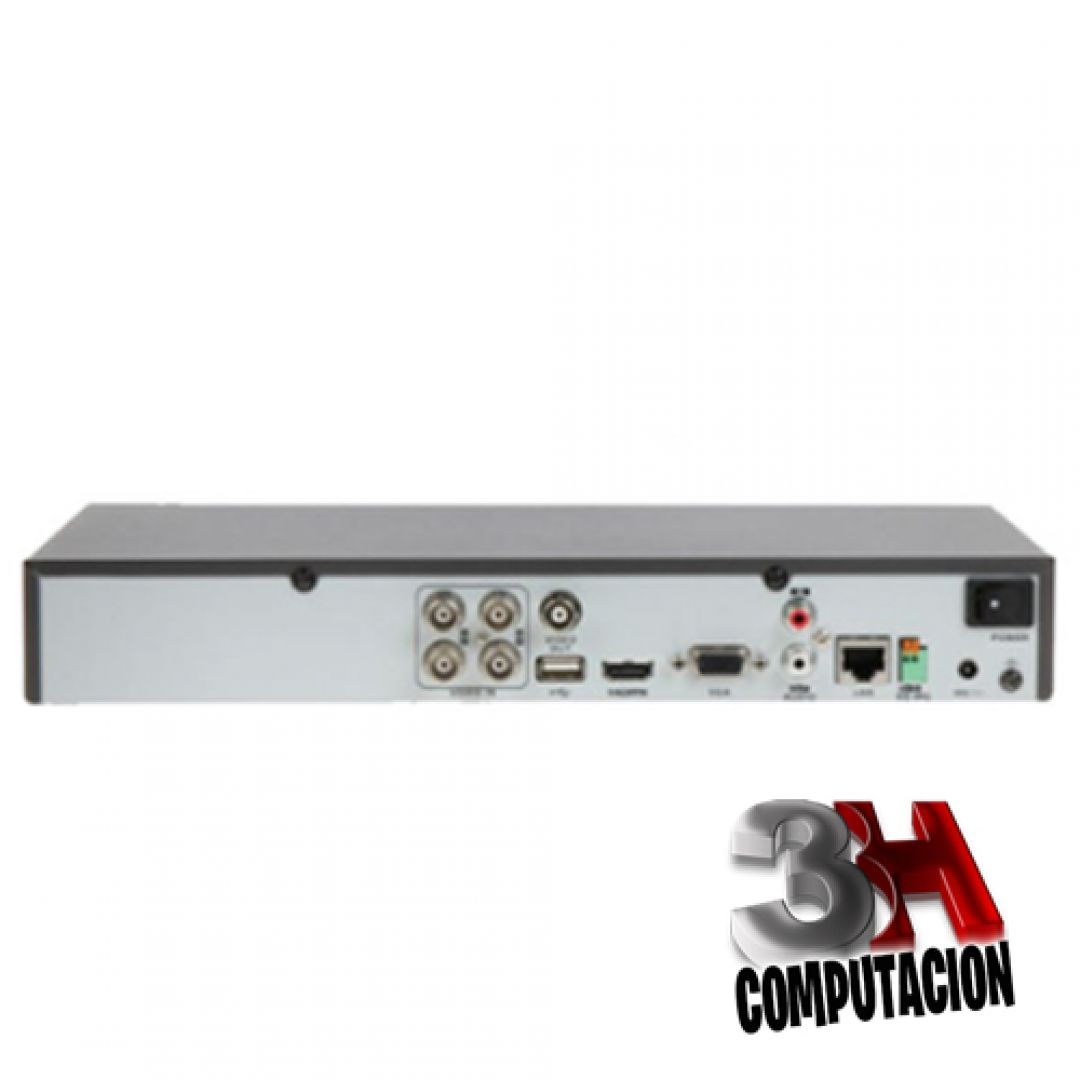

HIKVISION DVR 4CH IDS7204HQHIM1/FA ACUSENSE

Especificaciones:

Facial Recognition
Comparación de imagen de cara
Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
Face Picture Library
Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
Detección de movimiento 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Protección perimetral
Human/Vehicle Analysis
Up to 2-ch
Video and Audio
Entrada de vídeo IP
1-ch (up to 5-ch)

Enhanced IP mode on:

2-ch (up to 6-ch), each up to 4 Mbps

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Entrada de video analógico
4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input
3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input
5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input
5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS Input
PAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

Entrada de Audio
1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Salida de audio
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Reproducción síncrona
4-ch
Recording
Compresión de vídeo
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolución de codificación
When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate
Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Vídeo bitrate
32 Kbps to 6 Mbps
Doble flujo
Support
Stream Type
Video, Video & Audio
Compresión de audio
G.711u
Audio Bitrate
64 Kbps
Red
Conexión remota
32
Total Bandwidth
72 Mbps
Protocolo de red
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Interfaz de red
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-Fi
Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA
1 SATA interface, up to 10 TB capacity for each disk
Interfaz de serie
RS-485 (half-duplex)
Interfaz USB
Front panel: 1 × USB 2.0;

Rear panel: 1 × USB 2.0

Alarma E/S
N/A (optional to support)
General
Fuente de alimentación
12 VDC, 1.5 A
Consumo
≤ 18 W
Temperatura de trabajo
-10 °C to 55 °C (14 °F to 131 °F)
Condiciones de Humedad
10% to 90%
Dimensión (W × D × H)
319 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch)
≤ 1.16 kg (2.6 lb)
